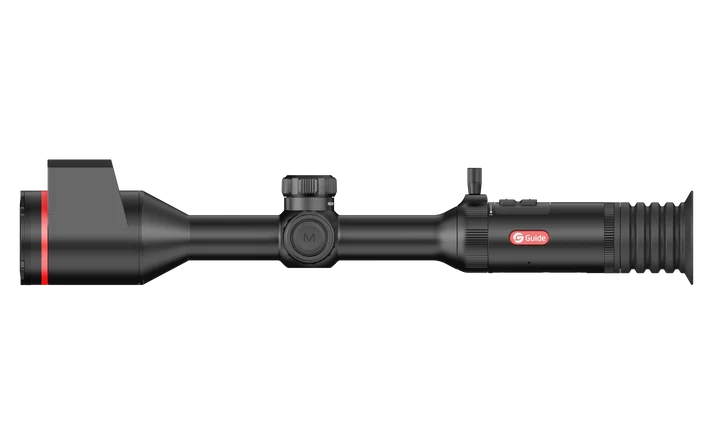

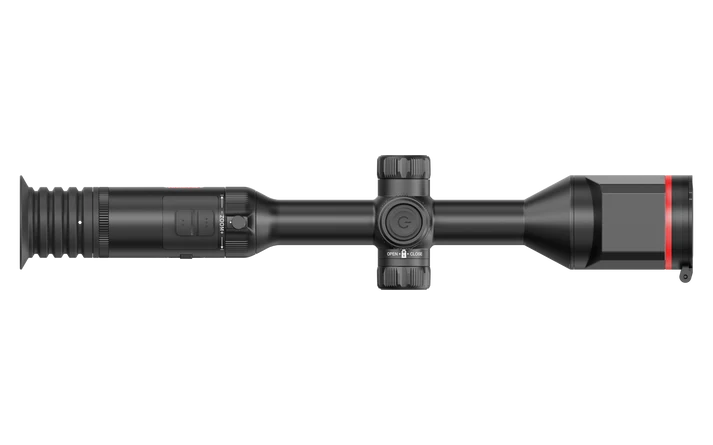

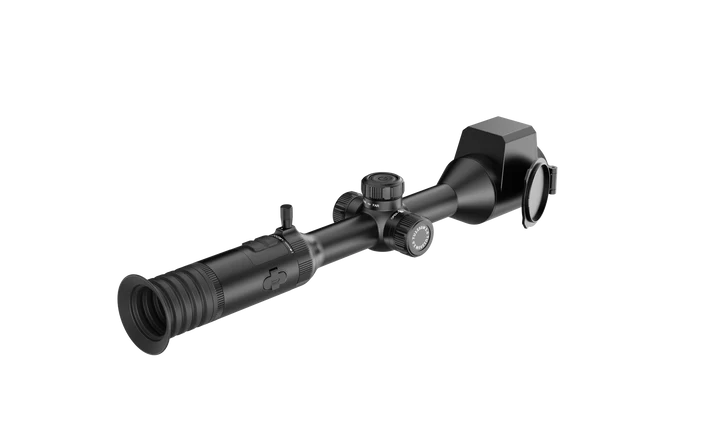

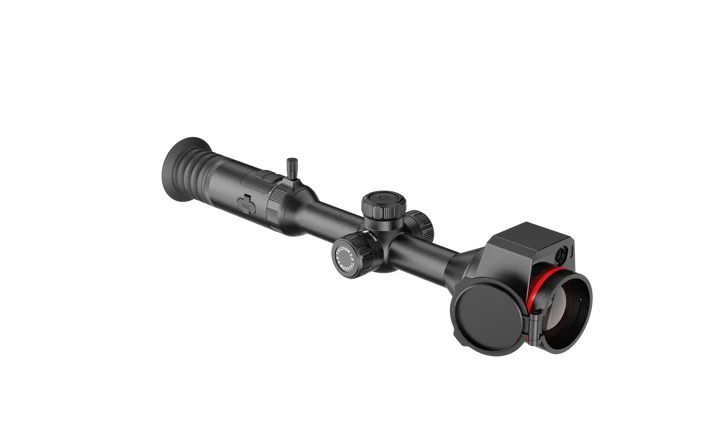

Guide TU1260MS Thermal Scope

The Guide TU1260MS Multispectral Thermal Scope combines ultra-high-resolution thermal imaging, digital day and night viewing, integrated laser rangefinding and advanced image processing in one rugged spectral optic.

At its core is an impressive 1280×1024 12μm thermal sensor with 15mK NETD thermal sensitivity, paired with a large-aperture 60mm F0.9 thermal lens. This combination provides exceptional thermal detail and a detection range of up to 3200 metres, while Guide's ApexVision S1 architecture and Hyper-Light processing enhance image clarity, contrast and definition.

Alongside its thermal system, the TU1260MS incorporates a 1920×1080 digital imaging sensor with dedicated Day, Night and Low-Light modes, allowing the optic to adapt to changing lighting and environmental conditions.

An integrated 1500m laser rangefinder, large 1.03-inch 2560×2560 AMOLED display, extensive magnification range, recording capability, Wi-Fi connectivity and IP68 protection complete Guide's advanced spectral TU platform.

Includes quick-release scope mount, IR torch and 30mm bracket.

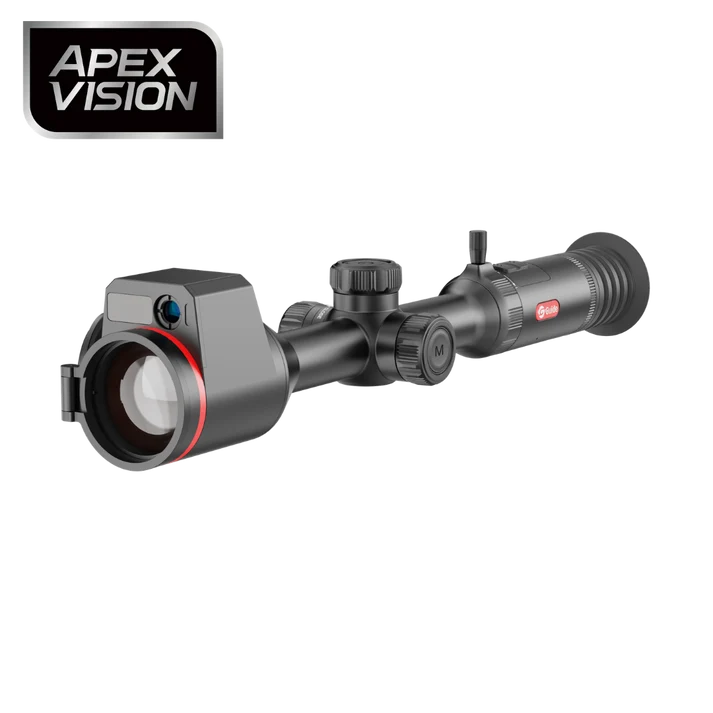

ApexVision S1 System Architecture

The TU1260MS is powered by Guide's ApexVision S1 image processing architecture, developed to enhance the performance of the complete thermal imaging system.

Working alongside the high-resolution detector, ApexVision enhances image definition, contrast and fine thermal detail while helping reduce unwanted image noise.

Combined with Guide's Hyper-Light processing, the system is designed to retain greater environmental and subject detail across demanding viewing conditions.

Ultra-High-Resolution 1280×1024 Thermal Sensor

The standout feature of the Guide TU1260MS is its 1280×1024 thermal detector with a 12μm pixel pitch.

With more than 1.3 million thermal pixels, the sensor provides exceptional image detail and resolution, allowing finer features within thermal scenes to remain visible compared with lower-resolution thermal detectors.

Its 15mK NETD sensitivity enables the detector to distinguish subtle temperature differences, helping retain definition in challenging weather and low thermal-contrast environments.

A 50Hz frame rate provides smooth imagery when scanning terrain or observing moving subjects.

Multispectral Thermal & Digital Imaging

Unlike a conventional thermal-only optic, the TU1260MS combines thermal and digital imaging systems in a single platform.

The thermal channel uses the 1280×1024 detector for heat-based observation, while the integrated 1920×1080 digital sensor provides conventional visible-light imaging.

Dedicated Day, Night and Low-Light modes allow users to select the viewing system best suited to current conditions, providing considerably greater flexibility across different environments and times of day.

60mm F0.9 Thermal Lens & 3200m Detection Range

The thermal imaging system is paired with a large-aperture 60mm F0.9 objective lens.

Its fast F0.9 aperture allows more infrared energy to reach the thermal detector, complementing the high-sensitivity sensor and advanced image processing system.

The thermal channel provides a stated detection range of up to 3200 metres, making the TU1260MS an exceptionally capable option for extended-range thermal observation.

2.3×–36.8× Thermal Magnification

The thermal channel provides a broad 2.3× to 36.8× magnification range.

The relatively low 2.3× base magnification works with the high-resolution 1280×1024 detector to provide a broad viewing area for scanning, while the substantial digital magnification range allows distant subjects to be examined more closely.

The thermal field of view measures 14.6° × 11.7°, providing strong situational awareness despite the optic's considerable long-range capability.

Full HD Digital Imaging

The TU1260MS also incorporates a 1920×1080 digital sensor paired with a 35mm F4.0 lens.

The digital channel provides 5.1×–81.6× magnification and a stated detection range of up to 330 metres.

Users can select between Day, Night and Low-Light viewing modes, allowing the digital system to adapt to available ambient light and viewing conditions.

An included IR illuminator and 30mm bracket provide additional illumination for supported night-time digital viewing.

Integrated 1500m Laser Rangefinder

The Guide TU1260MS incorporates an integrated laser rangefinder capable of measuring distances out to 1500 metres.

The LRF provides distance information directly through the optic, allowing users to observe and range subjects without carrying or switching to a separate handheld rangefinder.

Its extended 1500m ranging capability complements the TU1260MS's long-range thermal imaging system.

Hyper-Light Image Processing

Guide's Hyper-Light algorithm works alongside the thermal detector and ApexVision S1 architecture to improve image clarity, contrast and definition.

The processing system helps reduce image noise while bringing out finer environmental and thermal details, particularly when temperature differences across a scene are relatively small.

1.03" 2560×2560 AMOLED Display

Both imaging systems are presented through a large 1.03-inch AMOLED display with 2560×2560 resolution.

The high-resolution display provides a detailed viewing experience that complements the TU1260MS's ultra-high-resolution thermal detector.

Thermal palettes include White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot and Sepia, while the visible channel provides Day, Night and Low-Light modes.

A -5 to +5 diopter adjustment allows the display to be adjusted for individual eyesight requirements.

Extended Battery System

The TU1260MS uses two built-in 18650 batteries together with one replaceable external 18650 battery.

The system provides up to 9 hours of operating time, while the replaceable external battery provides additional flexibility during longer field sessions.

USB-C connectivity supports charging and USB 2.0 functions.

Recording & Wi-Fi Connectivity

The Guide TU1260MS supports video and audio recording, allowing observations to be captured directly through the device.

Built-in Wi-Fi connectivity provides wireless access to compatible devices for supported viewing, sharing and device functions.

Rugged IP68 Construction

Designed for demanding outdoor environments, the TU1260MS carries an IP68 protection rating and is specified for operation between -20°C and 50°C.

Guide also specifies the TU MUO platform for shock resistance of up to 6000J, providing a robust construction for demanding field conditions.

Quick-Release Mount & IR Illuminator Included

The Guide TU1260MS comes supplied with additional equipment for both mounting and digital night viewing.

Included:

• Quick-release scope mount

• IR illuminator

• 30mm IR torch bracket

Quick-release scope mount torque: less than 2.5N·m / 22.13 in-lb.

Guide TU1260MS Specifications

Why Choose the Guide TU1260MS?

The Guide TU1260MS is Guide's flagship multispectral thermal platform, combining a 1280×1024 thermal sensor, 60mm F0.9 lens, 3200m detection range and integrated 1500m LRF with a full HD digital imaging channel in a single rugged optic.

For users who need maximum thermal resolution, extended detection range and the flexibility of both thermal and digital viewing modes, the TU1260MS represents the most capable platform in the Guide TU 3.0 range.
