What Does NETD (mK) Mean in Thermal Imaging?

When comparing thermal optics, you'll regularly see specifications like:

NETD <20mK
NETD <25mK
NETD <35mK

It's one of the most commonly advertised thermal specifications — and also one of the least understood.

So what does NETD actually mean, why is it measured in mK, and does a lower number automatically mean a better thermal?

Let's break it down.

WHAT IS NETD?

NETD stands for Noise Equivalent Temperature Difference.

Put simply, it's a measurement used to describe how effectively a thermal imaging system can distinguish very small differences in temperature.

NETD is normally expressed in millikelvin (mK).

One millikelvin is one-thousandth of a kelvin, so:

20mK = 0.020 K

25mK = 0.025 K

35mK = 0.035 K

These are extremely small temperature differences.

The important thing to remember is:

LOWER NETD = GREATER THERMAL SENSITIVITY

All else being equal, a thermal detector with a lower NETD can distinguish smaller differences in thermal radiation within a scene.

WHY DOES THERMAL SENSITIVITY MATTER?

Imagine looking across an open paddock on a cool, clear night.

A warm animal against colder surroundings creates strong thermal contrast. Even a relatively modest thermal system may produce a very obvious heat signature.

Now change the conditions.

It's humid. The ground, vegetation and surrounding objects are sitting at relatively similar temperatures.

There isn't as much thermal contrast in the scene.

This is where thermal sensitivity becomes particularly important.

A more sensitive thermal system can potentially distinguish smaller temperature differences, helping reveal subtle detail that may otherwise blend together.

Rather than simply showing “hot object against cold background,” a good thermal can reveal more of the temperature variation within the animal, vegetation and surrounding environment.

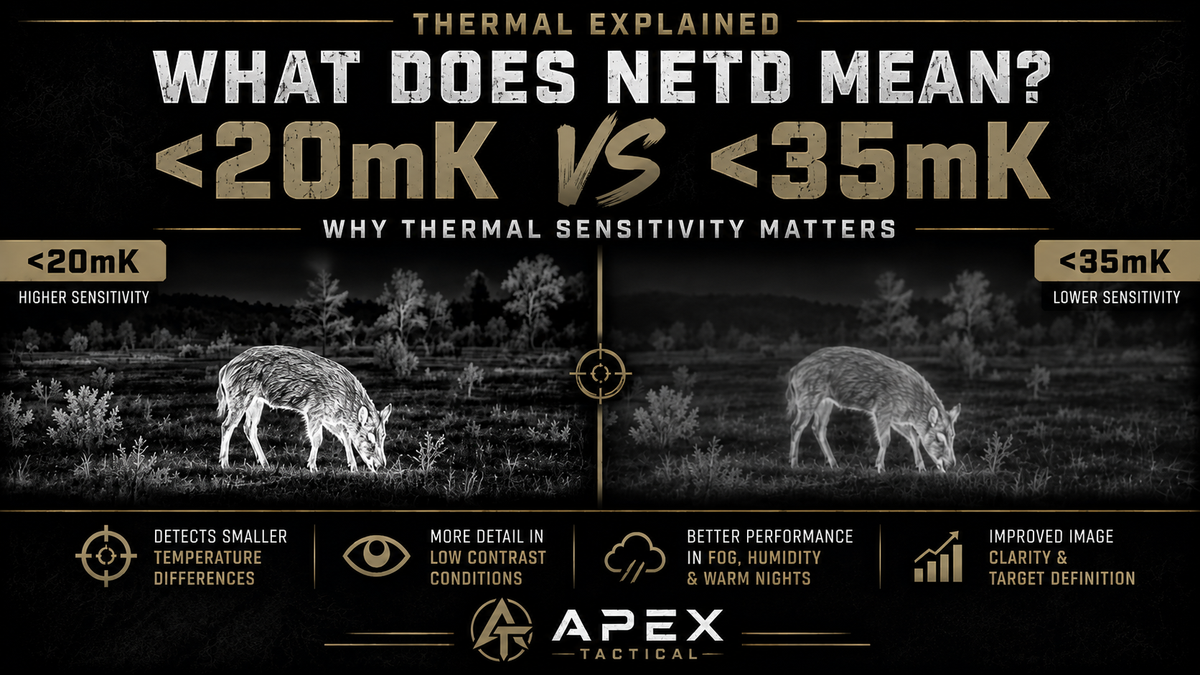

WHAT DOES <20mK ACTUALLY MEAN?

If a manufacturer specifies a thermal as having:

NETD <20mK

it is indicating a very low noise-equivalent temperature difference under the manufacturer's specified test conditions.

In simple terms, the detector is designed to resolve very small thermal differences.

Compare that with:

NETD <35mK

The <20mK specification indicates greater nominal thermal sensitivity than <35mK, assuming you're comparing equivalent measurements under equivalent conditions.

But that's an important qualification.

NETD shouldn't be considered in isolation.

DOES LOWER NETD ALWAYS MEAN A BETTER IMAGE?

Not necessarily.

NETD is an important specification, but the final image you see is produced by an entire thermal imaging system.

That includes:

Detector resolution
Pixel pitch
Objective lens
Image processing
Display resolution
Software algorithms
Focus
Environmental conditions

Two thermals carrying the same NETD specification can still produce noticeably different images.

Likewise, a thermal with a slightly higher quoted NETD may still provide an excellent viewing experience because of strong optics and image processing.

Think of NETD as one part of the picture — not a score for the entire thermal.

NETD VS SENSOR RESOLUTION

These specifications describe two different things.

RESOLUTION

A specification such as:

384 × 288

or

640 × 512

describes the number of detector pixels available to build the thermal image.

More detector pixels can provide greater spatial detail.

NETD

NETD describes the system's ability to distinguish small temperature differences.

So you could broadly think of them as:

Resolution = how much spatial information is available.

NETD = how sensitively small thermal differences can be distinguished.

Both can contribute to image quality, but neither tells you everything by itself.

If you haven't already, check out our guide:

384 vs 640 Thermal: What's the Difference & Is 640 Worth It?

WHEN DOES LOW NETD REALLY HELP?

The benefits of strong thermal sensitivity can become more apparent when thermal contrast is poor.

Examples can include:

HUMID CONDITIONS

Moisture in the atmosphere can reduce thermal contrast and affect how infrared radiation travels through the environment.

FOG AND MIST

Thermal can remain extremely useful in conditions where visible-light optics struggle, but atmospheric moisture can still reduce infrared transmission and image contrast.

WARM NIGHTS

When the surrounding terrain has retained heat from the day, the temperature difference between an animal and its surroundings may be reduced.

DENSE VEGETATION

Small temperature differences throughout vegetation can make a scene more complicated than an animal standing against an open, cold background.

EARLY MORNING

Depending on conditions, the environment can contain many objects sitting at relatively similar temperatures.

In challenging scenes like these, good thermal sensitivity can help preserve subtle differences within the image.

DOES NETD AFFECT DETECTION RANGE?

Not in the simple way people sometimes assume.

You can't look at:

<20mK

and conclude:

“This thermal detects farther than a <35mK thermal.”

Detection range is influenced heavily by factors including:

Lens focal length
Detector resolution
Pixel pitch
Target size
Atmospheric conditions
Thermal contrast

NETD contributes to the system's ability to distinguish thermal differences, but it doesn't independently determine maximum detection distance.

This is why comparing thermal optics based on one specification can be misleading.

WHAT DOES THE “mK” STAND FOR?

The m means milli.

The K means kelvin.

Therefore:

mK = millikelvin

A kelvin and a degree Celsius have the same size interval when we're talking about temperature differences.

So a difference of:

20mK = 0.020°C temperature difference

approximately in terms of temperature interval.

That's an incredibly small difference, which gives you some perspective on what modern thermal detectors are capable of measuring.

SHOULD YOU ALWAYS BUY THE LOWEST NETD?

No.

If you're comparing two otherwise very similar thermals, a lower NETD specification can certainly be attractive.

But don't sacrifice everything else just to chase the smallest number.

Consider the complete package:

What sensor resolution does it use?

What lens does it have?

What's the base magnification?

How wide is the field of view?

How good is the image processing?

How well does it handle digital magnification?

What's the battery system like?

How does the unit actually suit your intended use?

A specification sheet helps narrow down your options.

It doesn't replace evaluating the thermal as a complete system.

THE SIMPLE VERSION

If you don't want to remember all the technical details, remember this:

NETD MEASURES THERMAL SENSITIVITY.

Lower mK = ability to distinguish smaller temperature differences, all else being equal.

So:

<20mK is nominally more sensitive than <25mK.

<25mK is nominally more sensitive than <35mK.

But NETD alone doesn't tell you which thermal is better.

Sensor resolution, lens configuration, pixel pitch, processing and the intended application all matter.
