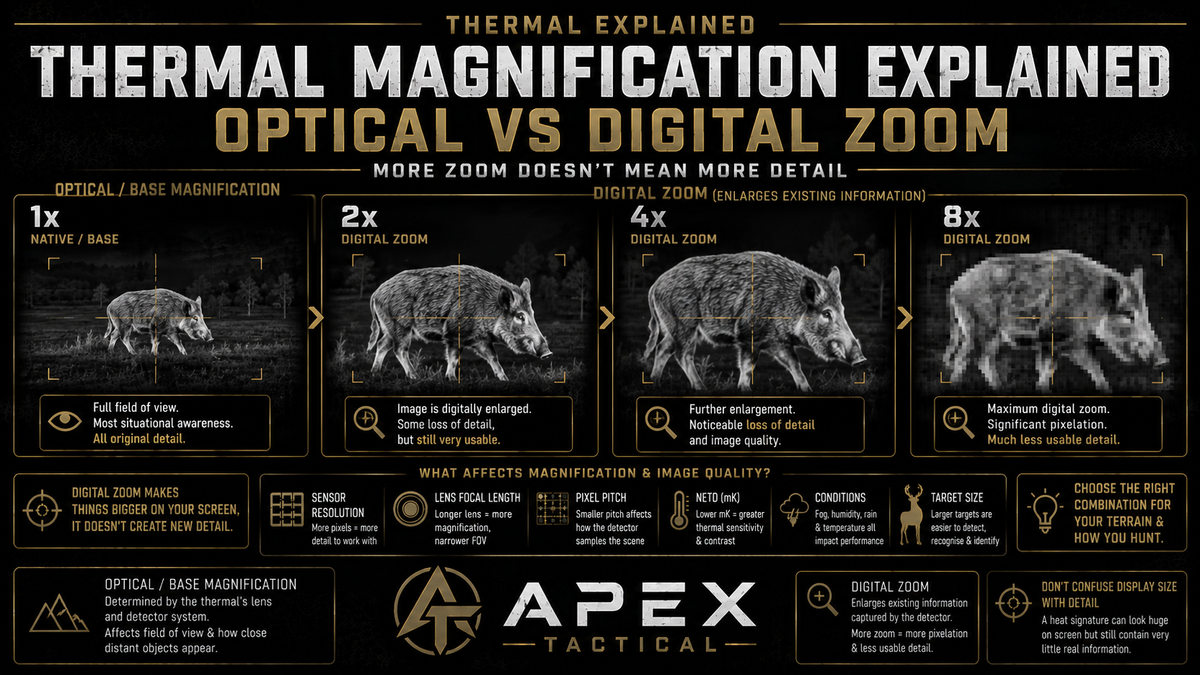

Thermal Magnification Explained: Optical vs Digital Zoom

When comparing thermal optics, magnification can look straightforward.

You might see specifications such as:

2.0× base magnification

2× / 4× / 8× digital zoom

Maximum magnification: 16×

It's easy to assume that more magnification means you'll simply see farther and get more detail.

But thermal magnification doesn't quite work that way.

There's an important difference between optical magnification and digital zoom — and understanding it can stop you from buying a thermal based on a number that doesn't tell the whole story.

Let's break it down.

WHAT IS BASE MAGNIFICATION?

Base magnification — sometimes called native or optical magnification — is the magnification produced by the thermal's detector and optical system before digital zoom is applied.

It's influenced by factors including:

Objective lens focal length

Detector dimensions

Pixel pitch

A thermal with a higher base magnification makes a distant target appear larger from the beginning.

But there's a trade-off.

HIGHER BASE MAGNIFICATION

Generally gives you a closer view of distant objects but a narrower field of view.

LOWER BASE MAGNIFICATION

Generally gives you a wider field of view, making it easier to scan large areas, but distant objects appear smaller.

Neither is automatically better.

It depends on what you're using the thermal for.

WHAT IS DIGITAL ZOOM?

Digital zoom works differently.

Instead of changing the optical image reaching the detector, digital zoom enlarges a smaller portion of the thermal image that has already been captured.

Think of taking a photo on your phone and cropping into the middle.

The object gets bigger on your screen.

But you haven't captured additional detail.

That's essentially what happens when you digitally magnify a thermal image.

DIGITAL ZOOM MAKES EXISTING INFORMATION BIGGER.

IT DOESN'T CREATE NEW THERMAL DETAIL.

That's the key difference.

WHY DOES IMAGE QUALITY DROP WITH DIGITAL ZOOM?

Your thermal detector has a fixed number of pixels.

Take a:

384 × 288 detector

At its native view, the system has 110,592 detector pixels available across the full image.

Apply digital zoom and you're effectively using a smaller section of that original detector image and enlarging it across the display.

As magnification increases, fewer original pixels represent the portion of the scene you're looking at.

The result?

The image becomes progressively more pixelated and contains less spatial information across the displayed scene.

That's why:

8× DIGITAL ZOOM DOESN'T MEAN 8× MORE DETAIL.

WHY DOES 640 HANDLE DIGITAL ZOOM BETTER?

This is one of the major advantages of higher detector resolution.

Compare:

384 × 288 = 110,592 detector pixels

with:

640 × 512 = 327,680 detector pixels

A 640-class detector starts with nearly three times as many detector pixels.

That gives the system more original image information to work with before digital enlargement.

As a result, a well-designed 640 thermal can generally retain more usable detail under digital magnification than a comparable lower-resolution system.

But digital zoom still doesn't create new information.

Eventually, even a high-resolution thermal will degrade as digital magnification increases.

For more on this, read:

384 vs 640 Thermal: What's the Difference & Is 640 Worth It?

DOES A BIGGER LENS MEAN MORE MAGNIFICATION?

Generally, increasing lens focal length while keeping the detector configuration the same increases base magnification.

For example, manufacturers may offer similar thermal platforms with:

25mm

35mm

50mm

objective lenses.

The longer focal-length version will generally provide greater base magnification and a narrower field of view when paired with the same detector.

But that doesn't mean the 50mm version is automatically better.

A 25mm configuration might be considerably easier to scan with in close terrain.

A 50mm configuration might make more sense when observation distances are greater.

Again:

CHOOSE THE OPTICAL CONFIGURATION FOR THE JOB.

MAGNIFICATION VS FIELD OF VIEW

Magnification and field of view are closely connected.

Increase base magnification and you'll generally see a smaller portion of the environment.

Reduce base magnification and you'll generally see more of the scene.

Imagine looking through:

A WIDE WINDOW

You can see a large area at once.

That's similar to a thermal with a wide field of view.

Now imagine looking through:

A NARROW OPENING

You see less of the environment, but what you're concentrating on occupies more of your view.

That's closer to a higher-magnification configuration.

For a handheld thermal used primarily for scanning, an extremely narrow field of view can make locating animals frustrating.

For longer-distance observation, the additional base magnification may be worth the trade-off.

WHY BASE MAGNIFICATION MATTERS WHEN BUYING

Suppose you're comparing two thermals:

THERMAL A

2× base magnification

THERMAL B

4× base magnification

If your typical use involves scanning relatively close terrain, Thermal A's wider field of view may make it far more comfortable to use.

If you're regularly observing targets at considerably longer distances, Thermal B's higher native magnification may be more useful.

Simply comparing their maximum digital zoom wouldn't tell you this.

That's why base magnification deserves much more attention than the huge maximum magnification number manufacturers sometimes advertise.

WHAT DOES “2×, 4×, 8× DIGITAL ZOOM” MEAN?

Many thermals provide stepped digital magnification.

You may see:

1×

2×

4×

8×

digital zoom levels.

These are multipliers applied to the thermal's native view.

So if a thermal has approximately 2× base magnification, applying a 2× digital zoom produces an apparent magnification of roughly 4×.

Apply 4× digital zoom and the apparent magnification becomes roughly 8×.

But remember:

The image has been digitally enlarged.

You haven't suddenly changed the lens or captured four times as much thermal information.

WHAT ABOUT PICTURE-IN-PICTURE?

Many modern thermal scopes include Picture-in-Picture, often abbreviated to PIP.

This usually displays a magnified portion of the image in a smaller window while preserving the wider native view around it.

This can be extremely useful.

You retain:

Situational awareness from the wider image

while also getting:

A magnified view of the selected area

It doesn't overcome the fundamental limitations of digital magnification, but it can make that magnification much more practical to use.

DOES MORE MAGNIFICATION MEAN MORE RANGE?

Not necessarily.

Making a detected heat signature appear larger on your display doesn't automatically give the detector more information about it.

Useful range depends on factors including:

Detector resolution

Lens focal length

Pixel pitch

Thermal sensitivity

Target size

Atmospheric conditions

Optical configuration

This is why a thermal advertised with 16× maximum magnification isn't automatically a better long-range thermal than one advertised with 8×.

You need to know how that magnification is being achieved.

For more on useful thermal range, read:

How Far Can a Thermal Actually See? Detection vs Recognition vs Identification

DON'T CONFUSE DISPLAY SIZE WITH DETAIL

There's another important point.

A heat signature can look enormous on the thermal's display after applying heavy digital zoom.

That doesn't necessarily mean you're seeing additional detail.

You're potentially just looking at the same limited detector information stretched across more display pixels.

This distinction matters particularly when you're trying to move from:

Detection

to

Recognition

to

Identification.

Zoom can make information easier for your eye to inspect.

But it can't recover thermal information the detector never captured.

SO HOW MUCH MAGNIFICATION DO YOU NEED?

Start with your environment.

CLOSE TO MEDIUM-DISTANCE SCANNING

Prioritise:

Lower base magnification

Wider field of view

Good thermal sensitivity

This generally makes finding and following moving heat signatures easier.

LONGER-DISTANCE OBSERVATION

Prioritise:

Appropriate native magnification

Suitable lens focal length

Higher detector resolution where budget allows

This gives you more useful optical information before relying heavily on digital enlargement.

MIXED USE

Look for balance.

An optic with moderate base magnification, a useful field of view and sufficient detector resolution can be more versatile than something optimised entirely for one extreme.

THE SIMPLE VERSION

If you only remember three things:

OPTICAL/BASE MAGNIFICATION

Comes from the thermal's optical and detector configuration.

DIGITAL ZOOM

Enlarges information the detector has already captured.

MORE DIGITAL ZOOM ≠ MORE DETAIL

A thermal advertising 16× maximum magnification isn't automatically better than one advertising 8×.

Look at the:

Base magnification

Sensor resolution

Lens

Field of view

and how they work together.

That's what determines whether the thermal actually suits your application.
