What Does 12μm Pixel Pitch Mean on a Thermal?
If you've spent any time comparing thermal optics, you've probably seen specifications like:
12μm
17μm
It's usually sitting somewhere alongside sensor resolution, NETD and lens size — but what does it actually mean?
The specification is called pixel pitch, and understanding it can help you make much more sense of how a thermal optic is configured.
Let's break it down.

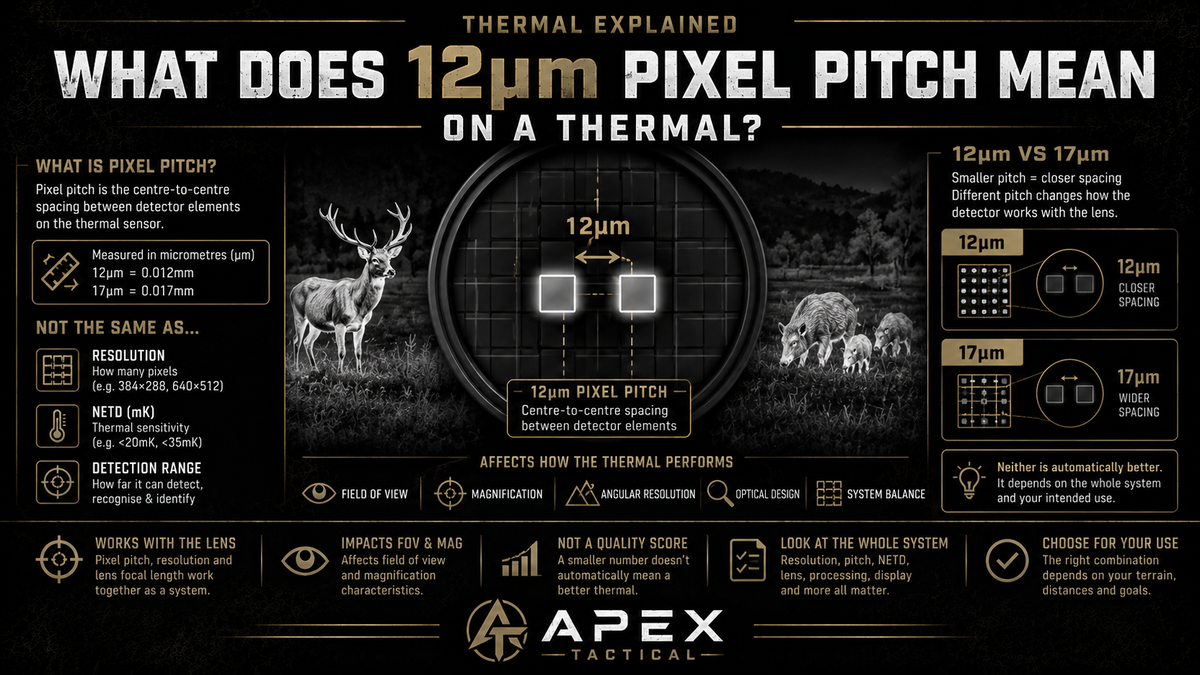

WHAT IS PIXEL PITCH?
A thermal detector is made up of thousands of tiny detector elements arranged in a grid.
Pixel pitch describes the centre-to-centre spacing between those detector elements.
It's normally measured in micrometres, represented by the symbol:
μm
One micrometre is one-thousandth of a millimetre.
So:
12μm = 0.012mm
17μm = 0.017mm
We're talking about extremely small dimensions.
When you see a thermal advertised as having a:
640 × 512, 12μm sensor
the 640 × 512 describes the number of detector pixels, while 12μm describes their pitch.
They're two separate specifications.
IS 12μm BETTER THAN 17μm?
This is where things get misunderstood.
It's tempting to look at the smaller number and assume:
12μm = better.
That's not really the right way to think about it.
Pixel pitch is part of the design of the thermal imaging system.
Moving from a 17μm detector architecture to 12μm allows a given number of detector pixels to occupy a physically smaller detector area.
It also changes how the detector interacts with a particular focal-length lens.
That can affect:
Field of view
Angular resolution
Magnification
Overall optical design
So rather than asking whether 12μm is simply “better”, it's more useful to understand what the manufacturer has done with it.
HOW DOES PIXEL PITCH AFFECT THE THERMAL?
Pixel pitch becomes particularly useful when considered alongside the objective lens focal length.
Imagine two thermal systems using the same lens focal length but different pixel pitches.
The detector with the smaller pixel pitch samples the scene at a smaller angular interval per detector pixel.
This can allow manufacturers to achieve different combinations of magnification, field of view and physical detector size.
That's why you shouldn't compare lens focal length alone.
A 35mm thermal isn't automatically equivalent to another 35mm thermal.
You also need to know what detector sits behind the lens.
12μm AND LENS SIZE
Let's say you're comparing thermal monoculars with:
19mm
25mm
35mm
or
50mm
objective focal lengths.
The longer focal length generally gives you a narrower field of view and greater optical magnification when the detector configuration remains the same.
But change the detector resolution or pixel pitch and the relationship changes.
This is why thermal specifications should be considered as a system, rather than individual numbers.
SENSOR + PIXEL PITCH + LENS
Those three specifications together tell you considerably more than any one of them by itself.
WHAT ABOUT FIELD OF VIEW?
Field of view tells you how much of the scene is visible through the thermal.
For a given detector resolution and pixel pitch:
SHORTER FOCAL LENGTH
Generally means a wider field of view.
LONGER FOCAL LENGTH
Generally means a narrower field of view and greater optical magnification.
Pixel pitch also influences that relationship because it helps determine the physical dimensions of the detector.
This becomes particularly important when choosing a thermal for different environments.
A wide field of view can be extremely useful when scanning close or dense terrain.
A narrower field of view with greater magnification may be preferable when observing across larger open areas.
DOES SMALLER PIXEL PITCH MEAN MORE PIXELS?
No.
This is another important distinction.
SENSOR RESOLUTION
Tells you how many detector pixels there are.
For example:
384 × 288
or
640 × 512
PIXEL PITCH
Tells you the spacing of those detector elements.
For example:
12μm
or
17μm
A thermal can therefore have a 384 × 288 detector with 12μm pitch, while another can have a 640 × 512 detector using the same 12μm pitch.
Same pixel pitch.
Very different total detector resolution.
DOES 12μm MAKE THE IMAGE SHARPER?
Not automatically.
Image sharpness and detail are affected by the complete thermal system, including:
Detector resolution
Lens quality
Focus
NETD / thermal sensitivity
Image processing
Display
Optical magnification
Atmospheric conditions
Pixel pitch contributes to the system's optical and sampling characteristics, but you can't simply compare:
12μm vs 17μm
and determine which thermal will produce the better image.
WHAT ABOUT DETECTION RANGE?
Smaller pixel pitch can contribute to how a thermal system is designed for angular resolution and range, but again, pixel pitch doesn't determine detection range by itself.
Detection performance depends on the combination of:
Pixel pitch
Lens focal length
Sensor resolution
Target size
Thermal contrast
Atmospheric conditions
This is why you might see two 12μm thermals with very different advertised detection ranges.
Their lenses and detector configurations may be completely different.
WHY HAS 12μm BECOME SO COMMON?
Modern thermal technology has allowed manufacturers to produce increasingly compact detector architectures.
A smaller pixel pitch can allow manufacturers to achieve useful optical performance with physically smaller detector and lens combinations.
That can contribute to thermal devices becoming:
More compact
Lighter
More versatile
while still delivering strong performance.
That's one reason you'll see 12μm appear frequently across modern thermal scopes and monoculars.
But again:
12μm IS A DESIGN SPECIFICATION — NOT A QUALITY SCORE.
PIXEL PITCH VS NETD
These two specifications are sometimes confused.
They measure completely different things.
PIXEL PITCH — μm
Describes the spacing of detector elements.
NETD — mK
Describes thermal sensitivity — the ability of the system to distinguish small temperature differences.
So:
12μm does NOT mean the thermal has better temperature sensitivity.
And:
<20mK doesn't tell you anything about the physical spacing of the detector pixels.
If NETD still looks like alphabet soup, read:
What Does NETD (mK) Mean in Thermal Imaging?
PIXEL PITCH VS RESOLUTION
Likewise:
640 × 512 tells you the number of detector pixels.
12μm tells you their pitch.
A useful way to remember it is:
RESOLUTION = HOW MANY
PIXEL PITCH = HOW CLOSELY SPACED
NETD = HOW THERMALLY SENSITIVE
Once you understand those three concepts, thermal specification sheets become much easier to read.
SHOULD PIXEL PITCH DECIDE WHICH THERMAL YOU BUY?
Usually, no.
You should certainly understand it, but buying a thermal purely because it says 12μm on the specification sheet doesn't make much sense.
Instead, look at how the entire system has been configured.
Consider:
Sensor resolution
Pixel pitch
NETD
Lens focal length
Base magnification
Field of view
Detection capability
Display
Image processing
Battery system
Size and ergonomics
Then consider how those specifications fit your intended use.
That's much more useful than chasing one particular number.
THE SIMPLE VERSION
If you only remember one thing from this article:
12μm IS THE PIXEL PITCH OF THE THERMAL DETECTOR.
It describes the spacing between detector elements.
It isn't the same thing as resolution.
It isn't the same thing as NETD.
And a smaller pixel pitch doesn't automatically mean one thermal is better than another.
The real performance comes from how the detector, pixel pitch, lens and processing work together.
